Electric Butterfly Valve
Introduction:
The electric butterfly valve is a kind of electric valve and electric control valve. The main connection methods of electric butterfly valves are: flange type and wafer type. The main sealing forms of electric butterfly valves are: rubber seal and metal seal.
The electric butterfly valve controls the switch of the butterfly valve through the power signal. The product can be used as shut-off valve, control valve and check valve in piping system. With a manual control device, once a power failure occurs, it can be temporarily operated manually without affecting the use.
Application:
Widely used in industrial process automatic control systems in food, environmental protection, light industry, petroleum, chemical industry, water treatment, municipal engineering, papermaking, electric power, water treatment and other industries.
Electric butterfly valves are suitable for HVAC and refrigeration industries, but also for industrial, general service and water treatment applications.
Advantages:
1. The electric butterfly valve is convenient and quick to open and close, saves labor, has small fluid resistance, and can be operated frequently.
2. The electric butterfly valve is simple in structure, small in size and light in weight.
3. The electric butterfly valve can transport mud, and the liquid accumulated at the mouth of the pipeline is the least.
4. Under low pressure, the electric butterfly valve can achieve good sealing.
5. The electric butterfly valve has good regulation performance.
Main Parameters:
| Nominal Diameter |
DN50~DN1200 |
| Nominal Pressure |
1.0MPa, 1.6MPa |
| Temperature Range |
-30~130℃ |
| Voltage Range |
AC220V/110V/380V/24V |
| Structural Type |
Flange, Wafer |
| Body Material |
Cast Iron, Ductile Cast Iron, Cast Steel, Stainless Steel, etc |
| Disc Material |
304, 316, 316L, AL-Bronze, etc |
| Sealing Seat |
NBR, EPDM, PTFE |

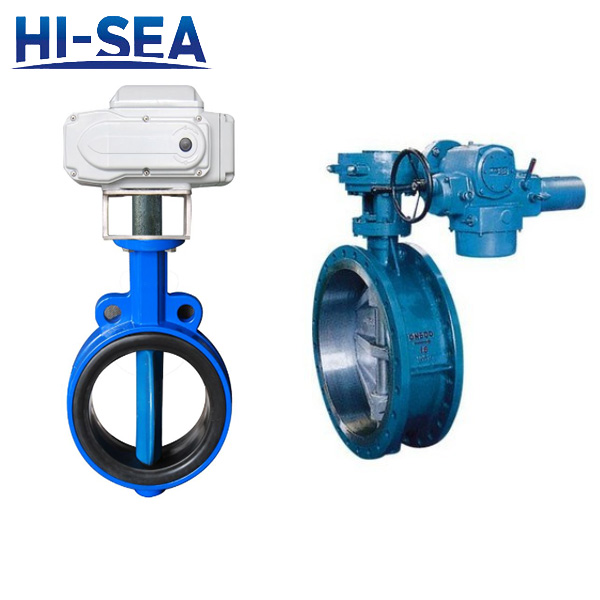

Product Showing:
