Pneumatic Rubber Liner Stop Valve

Pneumatic Rubber Liner Stop Valve

Introduction:

Pneumatic rubber lined stop valve is specially used to control general corrosive media. The inner surface of the valve body is covered with various kinds of rubber for selection, which is suitable for different operating temperatures and fluid pipes. It has the characteristics of high strength and good corrosion resistance. The valve disc of rubber lined stop valve is driven by the valve stem and moves up and down along the central axis of the valve seat. It is mainly used to connect or cut off the medium in the pipeline, but cannot be used for throttling.

Product benefits:

1. Low flow resistance. The medium channel inside the valve body is straight, the medium flows in a straight line, and the flow resistance is small.
2. It is easier to open and close. Compared with the stop valve, the movement direction of the gate is perpendicular to the flow direction of the medium whether it is open or closed.
3. Large height, long opening and closing time. The opening and closing stroke of the ram is large, and the lowering is carried out through the screw.
4. Water hammer is not easy to occur. The reason is that the shutdown time is long.

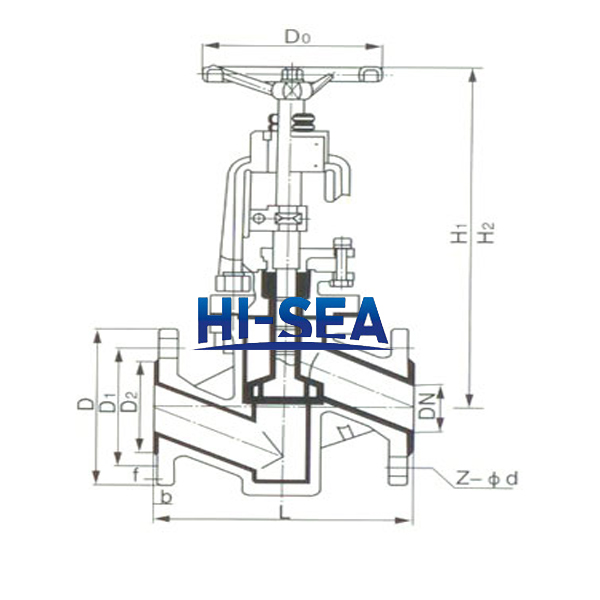

Drawing:

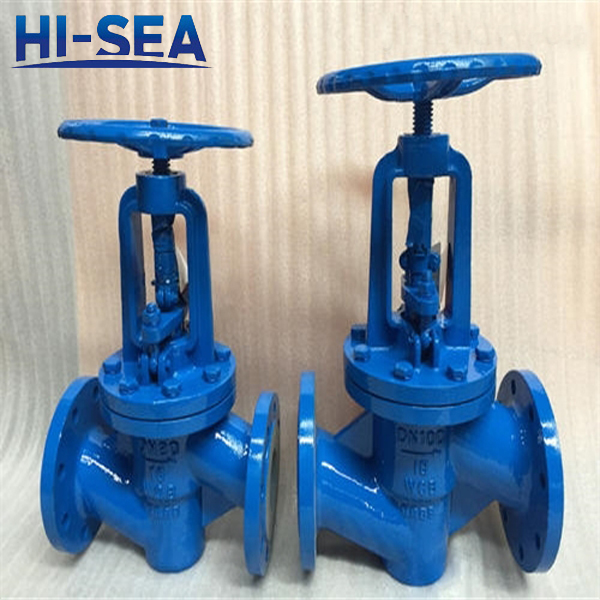

Product Showing:
