Sleeve Type Regulating Valve

Sleeve Type Regulating Valve

Introduction:

Electric sleeve regulating valve is a pressure balanced regulating valve, which adopts sleeve guide, pressure balanced double sealing surface valve core mechanism, and is equipped with multi spring pneumatic actuator or electric actuator. The flow channel is S-flow linear and has the characteristics of working balance, large allowable pressure difference, accurate flow characteristics and low noise. It is especially suitable for occasions with large flow, large pressure difference before and after the valve and no leakage requirements. This series of products have normal temperature type, high temperature type, low temperature type, regulating and cutting type, bellows sealing type and other forms.

The nominal pressure grades of products are PN1.6, 4.0, 6.4 and 10.0; The diameter range of valve body is DN20-300, applicable to a variety of grades within the range of – 196 – + 560 ℃.

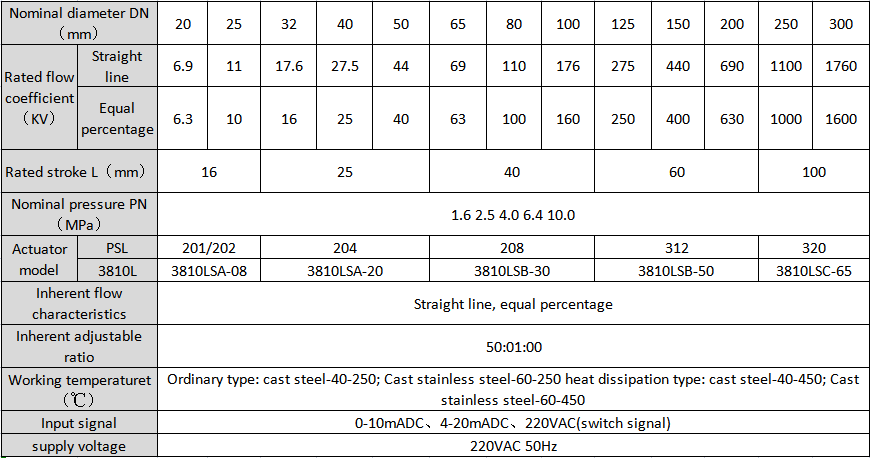

Main technical parameters:

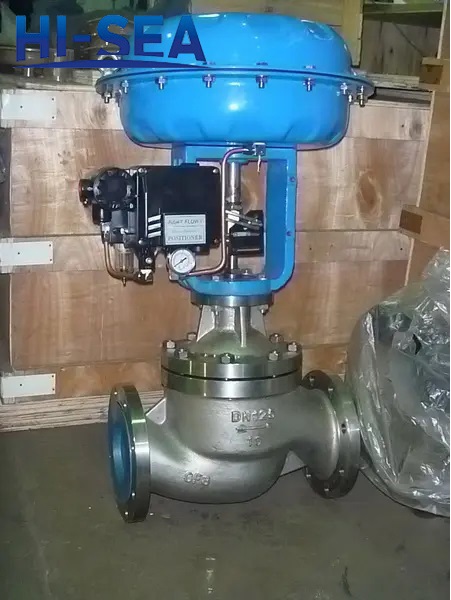

Product Showing:
