» Knife Gate Valve » Stainless Steel Electric Knife Gate Valve
  • Stainless Steel Electric Knife Gate Valve

    Product model: PZ973H, PZ973X

    Nominal diameter: DN50 ~ DN1200

    Nominal pressure: 0.6Mpa ~ 2.5Mpa

    Applicable temperature: - 20 º C~+150 º C~425 º C

    Valve body material: cast steel, stainless steel

    Applicable media: slag, coal ash, lime, slurry, sewage, syrup, etc

    Structure: single ram, double ram

    Connection mode: flange, wafer

    Drive mode: manual, sprocket, bevel gear, electric, pneumatic, hydraulic

    Manufacturing standards: GB, German DIN, American API, ANSI

    • Description

    Stainless Steel Electric Knife Gate Valve

    Introduction:

    The stainless steel electric knife gate valve adopts a multi turn electric device to drive and control the opening and closing of the valve. The operator can control the valve remotely in the control room, or manually operate it on site, or cooperate with the computer to achieve automatic computer control. Users can select according to actual needs. It is widely used in chemical industry, coal, sugar, sewage, paper making and other fields, and is an ideal sealing valve. It is especially suitable for the paper industry to adjust and throttle the pipes.

    Electric device parameters:

    Power supply: AC380V, 50HZ
    2. Standard type: the standard type product has dust-proof and rainproof enclosure protection capability, with protection grade of IP65, and can be directly used outdoors
    3. Waterproof type: the product has a dust-proof and water-proof (IP67) enclosure protection grade
    4. Explosion proof type (EX): D Ⅱ BT4/D Ⅱ CT4 (excluding acetylene)
    5. Ambient temperature: – 20 º C~+150 º C~425 º C
    6. Optional: equipped with electrical controller

    Key parts material:

    Key performance indicators:

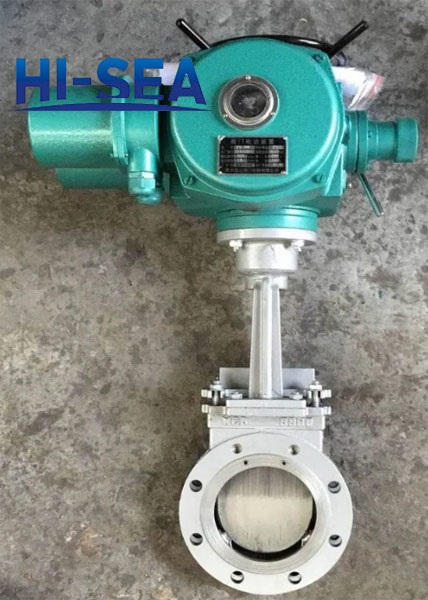

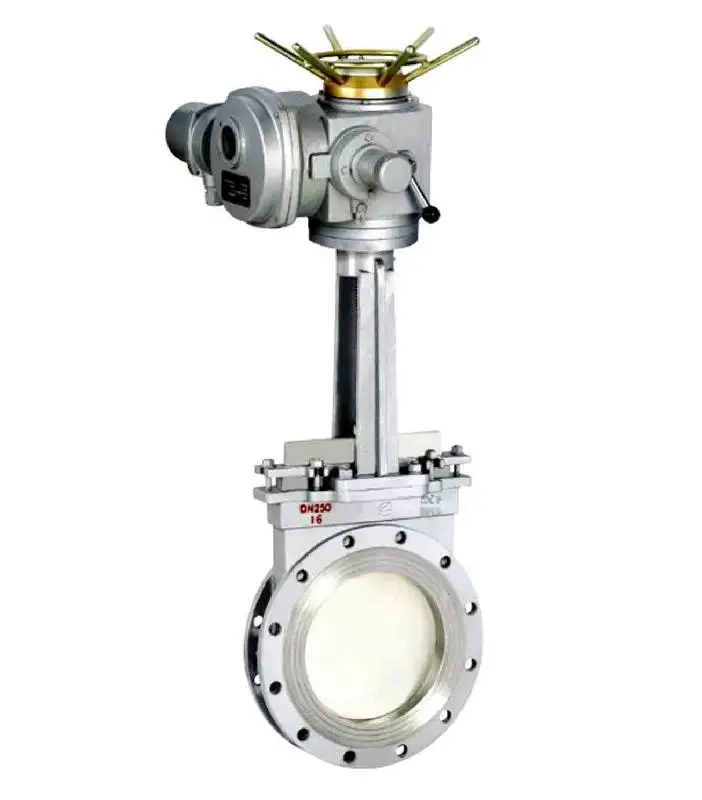

    Product Showing:
