Top-mounted Nuclear Power Ball Valve
Introduction:
Top-mounted nuclear power ball valve, including valve body, valve cover, valve stem, limit plate, limit pin, preload spring, compression nut, sealing sleeve, protective sleeve, sealing ring, inclined sphere and other parts.
Features:
It is characterized in that: the valve body is integral, and the valve cover is installed on the valve body. The waste liquid with nuclear radiation will not leak into the environment when the valve is overhauled. The valve has good rigidity, excellent shock resistance and radiation resistance, long service life, and convenient installation and maintenance. It is suitable for the waste liquid conveying system of nuclear power plants such as pressurized water reactors.
Main Parameters:
| Size |
DN8～DN150 mm |
| Design Pressure |
≦2.0 MPa |
| Material |
20MN5M Z3CN20-09M A48AP Z2CND17-12 CF8 CF3 CF8M CF3M 316 316L 304 304L WCB |
| Temperature |
≦150 ℃ |
| Medium |
Air, boron containing water, desalinating water, equipment cooling water, condensate water |
| Operating Method |
Manual, Electric, Pneumatic |

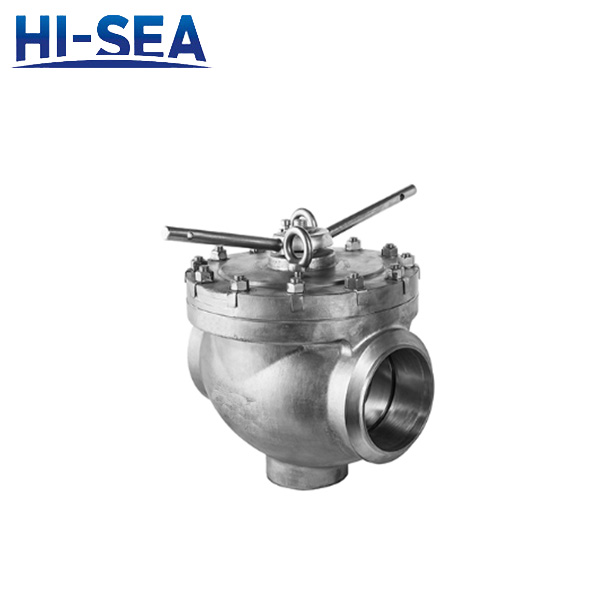

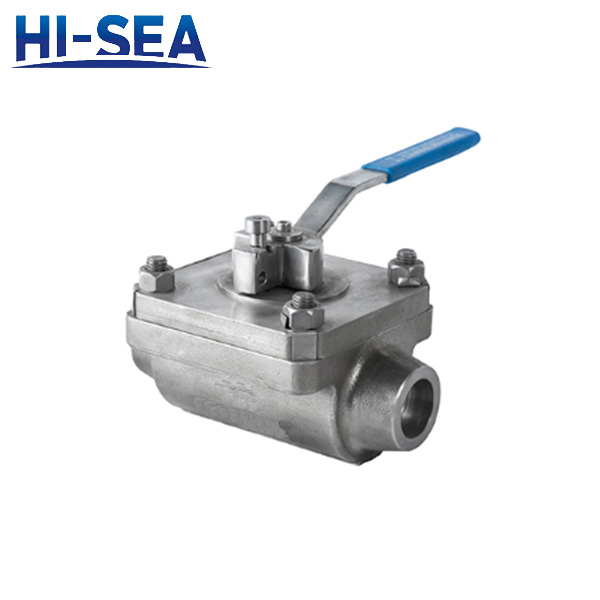

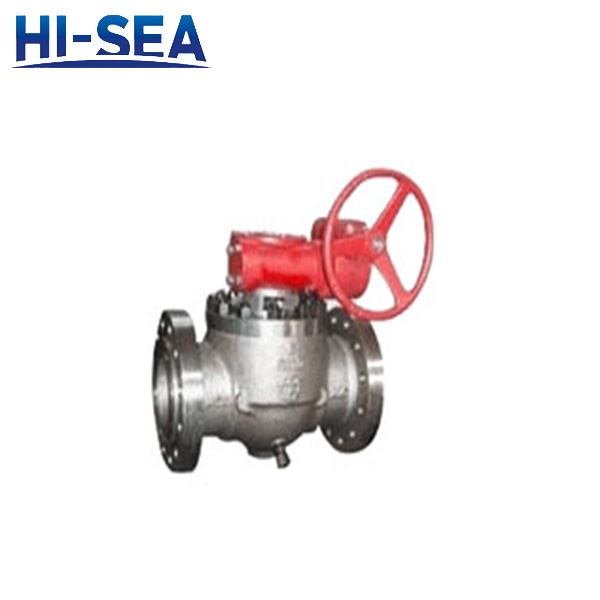

Product Showing:
