VH3V Two Position Three-way High Pressure Ball Valve

VH3V Two Position Three-way High Pressure Ball Valve

Introduction:

VH3V two position three-way high pressure ball valve is mainly used to control the flow and cut-off of oil in the hydraulic pipeline. This type of ball valve is characterized by small flow resistance loss, reliable sealing performance, convenient operation, and beautiful appearance. Is suitable for opening and closing on various pipelines of hydraulic system and chemical system. Applicable media: hydraulic oil, water glycol, other mixed liquids.

Model description:

•  Series code: VH3V series
•  Valve body material: 1-steel, 2-stainless steel
•  Ball material: 1-steel, 2-brass, 3-stainless steel
• Operating temperature: 1. – 25 ～ ＋ 100 ℃ 2. – 30 ～ ＋ 170 ℃
• Other seals: 2-NBR, 4-fluororubber
•  Handle type: 01 – aluminum straight handle 02 – aluminum crank 03 – cast zinc straight handle 04 – cast zinc crank 05 – steel straight handle 06 – steel crank 09 – without handle
• Design No.: to be determined by the manufacturer
• Surface treatment: blank – phosphating, G-plating yellow zinc

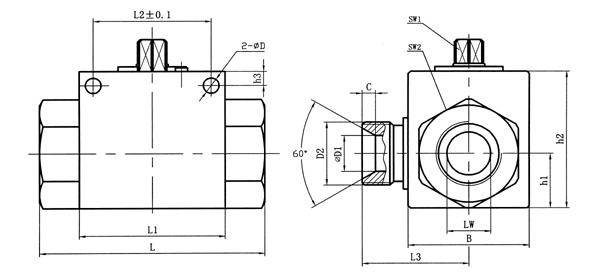

Drawing:

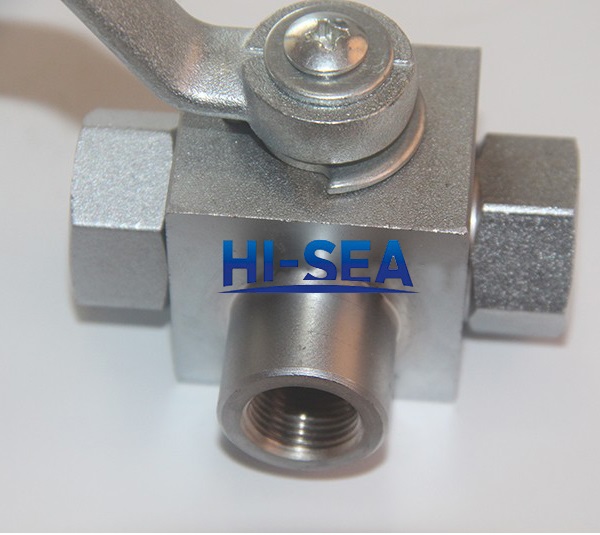

Product Showing:
