  • Wafer Type Butterfly Valve

    The hard sealing butterfly valve is widely used in the medium temperature ≤425℃ for gold, electric power, petrochemical industry, as well as water supply and drainage and municipal construction and other industrial pipelines, for regulating flow and load cut-off body.

    • Description

    Wafer Type Butterfly Valve

    Introduction:

    The hard sealing butterfly valve adopts precise J-shaped elastic sealing ring and three eccentric multi-level metal hard sealing structure, which is widely used in the medium temperature ≤425℃ for gold, electric power, petrochemical industry, as well as water supply and drainage and municipal construction and other industrial pipelines, for regulating flow and load cut-off body.

    Product features:

    1.the clip-type hard seal butterfly valve adopts three eccentric seal structure, the valve seat and the butterfly plate almost no wear, with a tighter sealing function

    2.The sealing ring is made of stainless steel, which has the double advantages of metal hard seal and elastic seal. Regardless of low temperature and high temperature, it has excellent sealing performance, corrosion resistance, long service life and so on

    3.The sealing surface of butterfly plate is surfacing cobalt-based hard alloy, the sealing surface is resistant to wear and has long service life

    4. Large size butterfly plate adopts quilted structure, high strength, large flow area, small flow resistance

    5. The clip-type hard seal butterfly valve has two-way sealing function, installation is not restricted by the flow of the medium, nor affected by the spatial location, can be installed in any direction

    6. The drive device can be installed in multiple stations (rotation 90° or 180°), easy to use.

    Outline Drawing:

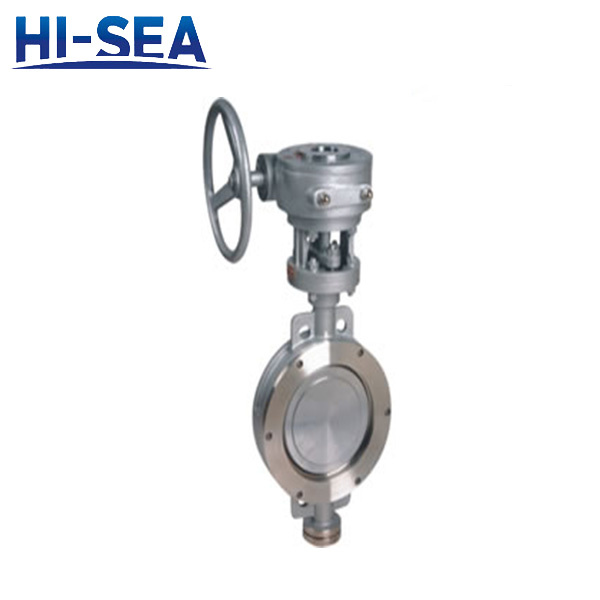

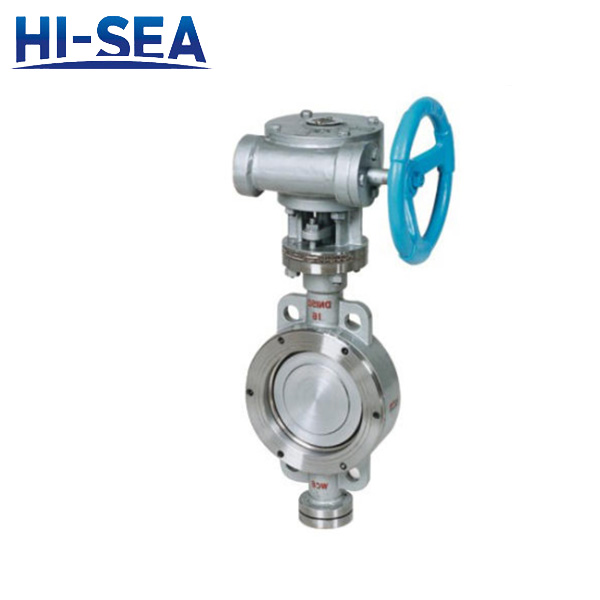

    Product Showing:
